Product Details:
|
| Usage: | School And Hospital | Material: | Copper |
|---|---|---|---|
| Service: | 20-100 Years | Sample: | Supply Free Sample |
| Sheath Material: | 601,INCL600 | Standard: | GB/T 18380 IEC 60332-3 BS6387, ANSI, IEC584 |
| Product Name: | Mi Thermocouple Cable, 4 Core MI Cable Copper Sheathed Mineral Insulated Cable | ||
| High Light: | mineral insulated wire,mi thermocouple cable |
||

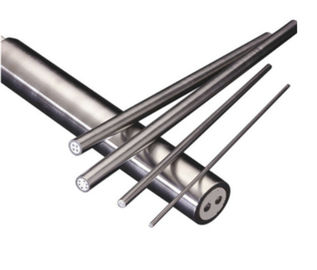

Industrial Mineral Insulated Cable Mi Thermocouple Cable INCL600 Sheath
Product Description
Temperature range: -100 to 1200℃
MI cable: OD 0.25 - 8.00
Sheath material: Inconel 600, SS316, SS304, SS321.
Mini coil length: Per client's request
Accuracy: Class I, II
Wire: Simplex & duplex
Electric property
Resistance value allowance:±10%
Dielectric property:heating cable pressure resist:1200V AC/1min
Insulation resistance:end product test:100MΩ/500VDC
Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,the value should be 50M/500VDC at least.

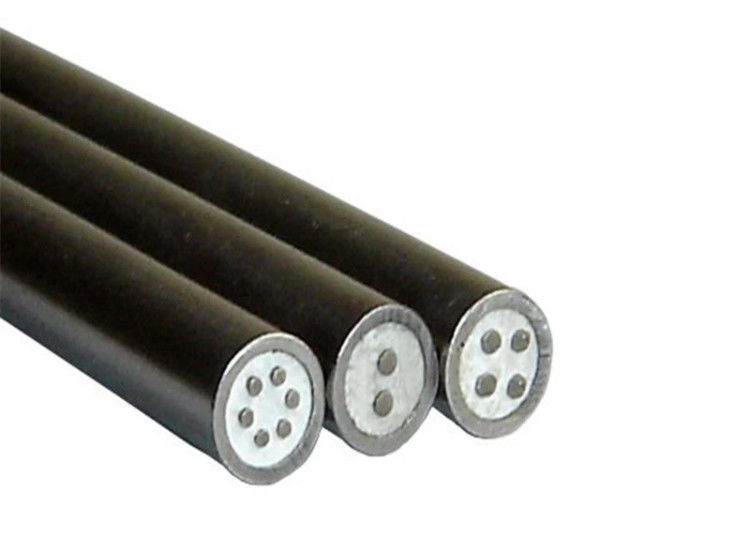

Thermocouple MI Copper Sheathed Industrial Mineral Insulated Cable
Description
| Product Name | Code | Type | Sheath material | Outer dia.(mm) | Temperature | |
| Ni Cr - Ni Si | KK | K | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 600 | ||||
| SS316 | 4.0-8.0 | 800 | ||||
| 0.5-1.0 | 500 | |||||
| SS310 | 1.5-3.2 | 800 | ||||
| INCL600 | 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | |||||
| Ni Cr Si - Ni Si | NK | N | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 600 | ||||
| SS316 | 4.0-8.0 | 800 | ||||
| 0.5-1.0 | 500 | |||||
| SS310 | 1.5-3.2 | 800 | ||||
| INCL600 | 4.0-6.4 | 900 | ||||
| 8.0-12.7 | 1000 | |||||
| Ni Cr -Konstantan | EK | E | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 500 | ||||
| SS316 | 4.0-8.0 | 800 | ||||
| Fe - Konstantan | JK | J | SS304 | 1.0 | 300 | |
| SS321 | 1.5-3.2 | 500 | ||||
| SS316 | 4.0-8.0 | 800 | ||||
| Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 | |
| SS321 | 1.5-3.2 | 100-200 | ||||
| SS316 | 4.0-8.0 | 100-350 |
Thermocouple MI Copper Sheathed Industrial Mineral Insulated Cable
